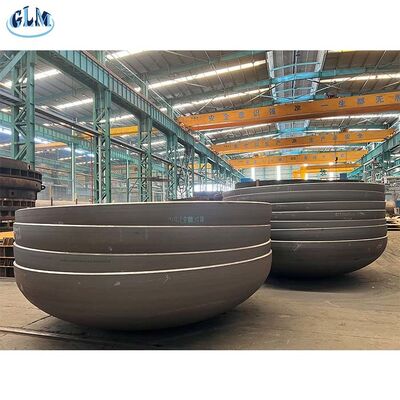

One-piece Molded Carbon Steel Elliptical Heads Are Used For Industrial Storage Tanks And Pressure Vessel Applications

Product Description:

The Elliptical Dish Head is a crucial component widely used in pressure vessel manufacturing, offering superior strength and durability. Designed according to the ASME standard, this product ensures compliance with stringent industry requirements, making it a reliable choice for various industrial applications. The elliptical shape of the head, commonly referred to as the Elliptical-Head-Dish, combines functional efficiency with structural integrity, allowing it to withstand high-pressure environments effectively.

One of the key attributes of the Elliptical Dish Head is its impressive pressure rating, capable of handling pressures up to 10 MPa. This makes it suitable for applications in chemical processing, petrochemical industries, and other sectors where pressure containment is critical. The ability to endure such high pressures without compromising safety or performance is a testament to the product’s robust design and manufacturing quality.

The manufacturing process of the Elliptical Dish Head involves both hot forming and cold forming methods. Hot forming allows the metal to be shaped at elevated temperatures, improving ductility and reducing the risk of cracks or defects. Cold forming, on the other hand, is used to achieve precise dimensions and surface finishes, ensuring the final product meets exact specifications. This combination of forming techniques results in a head that is both strong and dimensionally accurate.

After forming, the Elliptical-Dish-End undergoes meticulous manual and machined treatment processes. Manual treatment includes careful inspections and finishing touches to guarantee the absence of surface imperfections and to prepare the surface for machining. Machining further refines the shape and dimensions, achieving tight tolerances and smooth finishes essential for proper fitting and sealing in pressure vessels. This dual treatment process ensures that the Elliptical-Dish-Cap is ready for immediate integration into pressure vessel assemblies.

The head shape is round, consistent with the elliptical design, which optimizes the distribution of stress across the surface. This shape minimizes the concentration of stress points, thereby enhancing the pressure vessel’s overall safety and longevity. The round elliptical head also facilitates easier welding and attachment to cylindrical shells, making it a preferred choice among manufacturers and engineers.

In addition to its mechanical and physical attributes, the Elliptical Dish Head offers versatility in application. It can be used as an end cap or closure in pressure vessels, boilers, and storage tanks. The product is commonly referred to by several names such as Elliptical-Head-Dish, Elliptical-Dish-Cap, and Elliptical-Dish-End, reflecting its various roles in vessel construction. This versatility helps meet diverse customer needs across different industries.

Overall, the Elliptical Dish Head is a high-quality, ASME-compliant pressure vessel component that combines advanced forming techniques, thorough treatment processes, and a durable elliptical round shape. Its capacity to handle pressures up to 10 MPa, along with its precise manufacturing and finishing processes, makes it an indispensable part of modern pressure vessel design. Whether referred to as an Elliptical-Head-Dish, Elliptical-Dish-Cap, or Elliptical-Dish-End, this product stands out for its reliability, safety, and performance in demanding industrial environments.

Applications:

The GLM Elliptical Dish Head, also known as the Elliptical-Dish-End or Elliptical-Dish-Cap, is a premium product designed and manufactured in China with stringent quality standards. Certified by authoritative bodies including ASMEU, R, U2, PED, ABS, TUV, NB, and ISO, this product guarantees reliability and safety in various industrial applications. Its robust construction allows it to withstand pressure ratings up to 10 MPa, making it an ideal choice for demanding environments.

The primary application occasions for the GLM Elliptical-Dish-End encompass pressure vessels, storage tanks, and boilers. These components are essential in industries such as chemical processing, oil and gas, power generation, and water treatment, where containment and pressure resistance are critical. The elliptical shape of the Elliptical-Dish-Head optimizes stress distribution, ensuring enhanced durability and safety under high-pressure conditions.

In manufacturing and maintenance scenarios, the Elliptical-Dish-Cap is widely utilized during the assembly of pressure vessels and storage tanks. It is well-suited for both new constructions and retrofitting projects, thanks to its manual and machined treatment options. The product’s high corrosion resistance and heat treatment processes, including annealing and normalization, further extend its service life, even in corrosive or high-temperature environments.

GLM offers flexible packaging solutions such as wooden cases, wooden pallets, steel pallets, or customized packaging as per customer requirements, ensuring safe and secure delivery. With a supply ability of 50,000 pieces per month and a delivery time frame of 10 to 30 days, GLM efficiently meets the demands of large-scale industrial operations. Payment terms including L/C, Western Union, and T/T provide convenient transaction options for global buyers.

The GLM Elliptical-Dish-End is available at competitive prices ranging from $25 to $125, depending on specifications and order quantities, with a minimum order quantity of just one piece. This makes it accessible for both small-scale projects and large industrial orders. Its combination of high-quality materials, stringent certifications, and versatile application scenarios makes the Elliptical-Dish-Head a trusted component across various industries worldwide.

Customization:

GLM offers high-quality Elliptical-Dish-End products, including the Elliptical-Dish-Cap model known as Cap, proudly made in China. Our Elliptical-Head-Dish is certified by ASMEU, R, U2, PED, ABS, TUV, NB, and ISO, ensuring compliance with international standards.

We provide flexible customization services with a minimum order quantity of just 1 piece, priced between $25 and $125. Each Elliptical-Dish-End product is carefully packaged using wooden cases, wooden pallets, steel pallets, or customized packaging based on customer requirements.

The delivery time ranges from 10 to 30 days, supported by payment terms including L/C, Western Union, and T/T. GLM has a strong supply ability of 50,000 pieces per month, guaranteeing timely fulfillment of your orders.

Our Elliptical-Dish-Cap undergoes precise heat treatment processes such as annealing and normalization. The welding process features edge beveling to ensure durability and quality. We employ hot forging as the primary manufacturing process, with forming methods that include both hot forming and cold forming.

The edge type of our Elliptical-Head-Dish products can be customized to either straight edge or flanged edge, tailored to meet your specific application needs. Trust GLM for reliable and customizable elliptical dish head solutions.

Support and Services:

Product Technical Support and Services for the Elliptical Dish Head are designed to ensure optimal performance and customer satisfaction. Our dedicated support team provides comprehensive assistance throughout the product lifecycle, including installation guidance, troubleshooting, maintenance advice, and repair services.

We offer detailed documentation and user manuals to help you understand the specifications and operational procedures of the Elliptical Dish Head. Technical support is available to address any inquiries related to product functionality, compatibility, and customization options.

In addition to remote support, we provide on-site services for complex issues that require hands-on expertise. Regular maintenance programs are available to extend the lifespan and efficiency of the elliptical dish head, ensuring consistent performance under various environmental conditions.

Our service commitment includes timely updates on product enhancements and firmware upgrades, helping you leverage the latest technological improvements. We prioritize customer feedback to continuously improve our support services and product quality.

For any technical issues or service requests, please refer to the warranty terms and service policies provided with the product. Our aim is to deliver reliable support that maximizes the value and usability of your Elliptical Dish Head.

Packing and Shipping:

Product Packaging: The Elliptical Dish Head is carefully packaged using high-quality, durable materials to ensure it arrives in perfect condition. Each unit is wrapped in protective foam and placed inside a sturdy cardboard box to prevent any damage during transit. Additional cushioning is used to secure the product and minimize movement within the box.

Shipping: We offer reliable shipping options with tracking available for all orders of the Elliptical Dish Head. Standard shipping typically takes 5-7 business days, while expedited shipping options are available for faster delivery. All shipments are handled with care to ensure timely and safe arrival at your destination.

FAQ:

Q1: What is the brand and model number of the Elliptical Dish Head?

A1: The Elliptical Dish Head is manufactured by the brand GLM and the model number is Cap.

Q2: Where is the Elliptical Dish Head produced?

A2: The Elliptical Dish Head is made in China.

Q3: What certifications does the GLM Elliptical Dish Head have?

A3: The product is certified with ASMEU, R, U2, PED, ABS, TUV, NB, and ISO.

Q4: What is the minimum order quantity and price range for the Elliptical Dish Head?

A4: The minimum order quantity is 1 piece, and the price ranges from $25 to $125 depending on specifications.

Q5: What are the packaging options and delivery time for this product?

A5: Packaging options include wooden cases, wooden pallets, steel pallets, or custom packaging as per customer requirements. The delivery time is typically between 10 to 30 days.

Q6: What payment terms are accepted for purchasing the GLM Elliptical Dish Head?

A6: Payment terms include L/C (Letter of Credit), Western Union, and T/T (Telegraphic Transfer).

Q7: What is the monthly supply capacity for the Elliptical Dish Head?

A7: GLM can supply up to 50,000 pieces of the Elliptical Dish Head per month.
